As a leading sheet metal fabricator, Approved Sheet Metal knows the importance of high-quality precision welding.
Our welders are skilled in a wide range of techniques and can help customers determine the ideal assembly strategy for their parts. Selecting the appropriate weld joint type is a key step in this process.
Table of Contents
- 1 Common Weld Joints in Custom Sheet Metal Fabrication
- 2 Consult Your Sheet Metal Fabricator about the Optimal Joining Method
- 3 Consult Your Sheet Metal Fabricator about the Optimal Joining Method
- 4 Sheet Metal Part Design for Manufacturing Tip
- 5 Sheet Metal Fabrication Weld Joints FAQ
- 5.0.1 What are the primary considerations when choosing between open and closed corner joints for welding?
- 5.0.2 Why might spot-welded flanges be more suitable for high-volume production than smaller runs?
- 5.0.3 How does Approved Sheet Metal decide the optimal joining method for a specific assembly?
- 5.0.4 Apart from welding, what alternative methods does ASM recommend for joining parts?
- 5.0.5 How does ASM ensure exceptional results in sheet metal assembly, regardless of the chosen joining solution?
Common Weld Joints in Custom Sheet Metal Fabrication
Open corner weld joint
In an open corner joint, two pieces are joined along one edge at a 90-degree angle but are not flush, leaving a V groove behind the joint. This “open corner” is then welded with a filler rod along the entire length of the joint.
Typically used on aluminum parts over 0.40″ thick, open corner joints can be welded using several methods: fillet/seam, fuse, tack, or stitch welding. Our expert welders can determine the right approach based on the characteristics of the material and how much weld is needed to fill the open corner.
With this joint type, care must be taken to avoid heat deformation and warping.

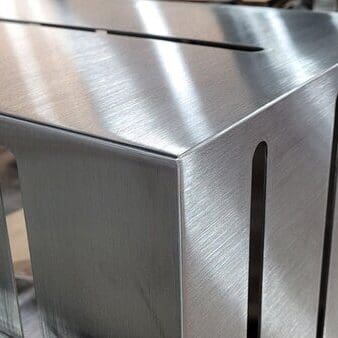

Closed corner weld joint
As with open corner joints, the primary challenge with closed corner joints is preventing heat deformation and warping.
Spot-Weld Flange Joint
Spot-welded flanges are a cost-effective, efficient solution for high-volume production but less optimal for smaller production runs because of the specialty tooling and fixturing required.
Consult Your Sheet Metal Fabricator about the Optimal Joining Method
ASM’s welders have decades of custom sheet metal fabrication experience and can work with you to determine the ideal joining method for your assembly-whether that means fabricating weld joints or using a different fastening method.
Joint and weld solutions
To determine the best weld for a joint, we’ll evaluate the length of the seam that needs to be welded as well as the material type and thickness.
If you call out a particular weld joint type and welding method, we’ll do our best to defer to your preference. However, if we identify a better solution for joining your parts, we may suggest an alternative approach.
For instance, say you have a 30″ seam on an aluminum part, and you want it to be welded solid. We know from experience that the material would need to be very thick for it not to warp. If you’re using a thin material, we’ll likely recommend a stitch weld, which will hold the parts together just as well without generating a potentially damaging amount of heat.
Other joining solutions
Weld joints aren’t the only way to connect parts. In fact, in some cases, other joining methods can replace or supplement welding.
- Rivets. These mechanical metal fasteners create tight, semi-permanent joints that perform well in many applications. A benefit of using rivets is there is no need to worry about heat deformation.
- Tab and slot connectors. These connectors work well when a bracket needs to be welded onto the part. For a tab and slot assembly, we fabricate tabs on the bracket and slots on the part, which interlock like puzzle pieces. We then fill and grind the slots so they aren’t visible from the outside.
- Cleco fasteners. These small, bullet-shaped fasteners are inserted temporarily into holes drilled throughout the parts of an assembly, holding the parts in perfect alignment during welding. After welding is complete, we remove the clecos and fill the holes with weld for a polished finish.
Whichever joining solution your assembly requires, our experienced team is equipped to get the job done with exceptional results.
Request a quote for custom sheet metal fabrication services that will exceed your expectations!
Closed corner weld joint
As with open corner joints, the primary challenge with closed corner joints is preventing heat deformation and warping.
Spot-Weld Flange Joint
Compatible with all sheet metal materials, spot-welded flanges can be welded inside
Spot-welded flanges are a cost-effective, efficient solution for high-volume production but less optimal for smaller production runs because of the specialty tooling and fixturing required.
Consult Your Sheet Metal Fabricator about the Optimal Joining Method
ASM’s welders have decades of custom sheet metal fabrication experience and can work with you to determine the ideal joining method for your assembly-whether that means fabricating weld joints or using a different fastening method.
Joint and weld solutions
To determine the best weld for a joint, we’ll evaluate the length of the seam that needs to be welded as well as the material type and thickness.
If you call out a particular weld joint type and welding method, we’ll do our best to defer to your preference. However, if we identify a better solution for joining your parts, we may suggest an alternative approach.
For instance, say you have a 30″ seam on an aluminum part, and you want it to be welded solid. We know from experience that the material would need to be very thick for it not to warp. If you’re using a thin material, we’ll likely recommend a stitch weld, which will hold the parts together just as well without generating a potentially damaging amount of heat.
Other joining solutions
Weld joints aren’t the only way to connect parts. In fact, in some cases, other joining methods can replace or supplement welding.
- Tab and slot connectors. These connectors work well when a bracket needs to be welded onto the part. For a tab and slot assembly, we fabricate tabs on the bracket and slots on the part, which interlock like puzzle pieces. We then fill and grind the slots so they aren’t visible from the outside.
- Cleco fasteners. These small, bullet-shaped fasteners are inserted temporarily into holes drilled throughout the parts of an assembly, holding the parts in perfect alignment during welding. After welding is complete, we remove the clecos and fill the holes with weld for a polished finish.
Whichever joining solution your assembly requires, our experienced team is equipped to get the job done with exceptional results.
Request a quote for custom sheet metal fabrication services that will exceed your expectations!
Sheet Metal Part Design for Manufacturing Tip
CORNERS AND WELDING
Proper technique on corners that need to be welded is necessary to reduce cost and increase the overall strength of the corners. Approved Sheet Metal will always reprogram corners that need to be welded to ensure customers receive the best possible welds.
Get more DFM TipsSheet Metal Fabrication Weld Joints FAQ
What are the primary considerations when choosing between open and closed corner joints for welding?
The primary distinction lies in the gap between the metal edges. Open corner joints feature a visible gap, often used for thicker aluminum parts, while closed corner joints have flush edges with no gap. Both types require careful handling to prevent heat deformation and warping during welding.
Why might spot-welded flanges be more suitable for high-volume production than smaller runs?
Spot-welded flanges are effective for joining two metal pieces but require specific tooling and fixturing. Consequently, they’re more cost-effective for larger production volumes. For smaller runs, the investment in tooling might not be as practical.
How does Approved Sheet Metal decide the optimal joining method for a specific assembly?
Our team evaluates various factors such as seam length, material type, and thickness. If you’ve specified a particular weld joint type and method, we’ll aim to accommodate your preference. However, based on our expertise, we might suggest an alternative approach for better results, especially concerning heat-sensitive materials or specific joint requirements.
Apart from welding, what alternative methods does ASM recommend for joining parts?
ASM offers various alternatives to welding, including rivets, tab and slot connectors, and Cleco fasteners. These methods cater to different assembly needs, providing options that avoid concerns like heat deformation and offering effective solutions for various applications.
How does ASM ensure exceptional results in sheet metal assembly, regardless of the chosen joining solution?
Our experienced team is equipped with decades of expertise in custom sheet metal fabrication. Whether it’s weld joints, rivets, tab and slot connectors, or Cleco fasteners, we ensure precise execution and a meticulous finish for every assembly, meeting and exceeding expectations.
