5 Design Hacks for Sheet Metal Assemblies

Last updated on July 15th, 2024 at 10:46 am

Approved Sheet Metal fabricates a wide range of sheet metal assemblies for customers, from small sub-assemblies to massive frame assemblies-all without breaking the bank.

Regardless of size, assemblies present quite a few unique challenges that not every fabricator is equipped to identify, let alone address. However, at ASM, we know how to help you avoid these challenges altogether with our expert sheet metal services.

With these proven design principles and a few clever hacks, you’ll be set to design sheet metal assemblies that fit and function as needed:

1. Pay Attention to the Assembly’s Tolerance Stack-Up

We frequently talk about tolerancing for individual sheet metal fabrications, but tolerancing is more complex with assemblies. In addition to assigning tolerances to individual components, you must consider the tolerance stack for the entire assembly.

We often discover that once multiple components are fitted together, specified assembly tolerances simply aren’t possible to achieve with welding.

Make use of these ASM engineering resources to keep a close eye on your assembly’s tolerances:

• Recommend Default Sheet Metal Tolerances
• Demystifying Sheet Metal Tolerances

2. Select the Best Assembly Method

Welding isn’t the only assembly method we offer with our sheet metal services. When heat distortion is a concern or welding simply can’t accomplish your goals, consider using pop rivets or screws to assemble your project.

If you’re looking for a fastening solution you don’t see here, talk to our team. Because assemblies often involve purchased components, remember to tell us if you want these items sourced from a specific supplier.

3. Prioritize Alignment and Fitment for Assembly Components

If your assembly’s modeling is even the slightest bit misaligned, our engineers will need to modify your design to ensure proper fitment. In most cases, alignment issues occur when an assembly’s design doesn’t include enough “wiggle room” to allow the individual components to shift and fall into alignment.

4. Consider the Assembly’s Surface Finish

We understand that surface finish is essential to an assembly’s appearance, performance, and compatibility with secondary finishing processes such as powder coating or painting. Sheet metal finish considerations aren’t inherently complicated, but overly large assemblies can introduce unexpected costs and logistical challenges.

One ASM customer recently required a hand-polished surface for their oversized stainless steel assembly-a requirement that can be costly and time-consuming to achieve.

While there’s little we won’t do to meet our customers’ needs and expectations, we also like to help by identifying solutions that slash costs and lead times. If you ask for an unusually challenging finish, don’t be surprised if we reach out to make sure you understand the implications of your request.

5. Set Up Your SOLIDWORKS Assembly File

Finally, you’ll want to correctly structure your assembly’s SOLIDWORKS file to facilitate efficient quoting, fabricating, and assembly.

At ASM, we use an automated upload system that analyzes parts and assemblies to build an estimate. Quoting assembly jobs can be complicated and time-consuming if the assembly file isn’t set up and saved properly.

This quick, two-minute video demonstrates how to make a well-organized assembly file that interacts seamlessly with our upload system.

What you’ll learn

As you’ll see in SOLIDWORKS Tech Tip #7: Setting Up Assemblies in SOLIDWORKS, you should structure your assembly file like this:

• Save the individual components as SLDPRT part files
• Add the components to an assembly file
• Mate the components to form the assembly
• Save the SLDASM assembly file

This approach allows us to extrapolate the assembly information for engineering without having to resave every part file. By making a new assembly file with your individually saved component files, you’ll cut your lead time and get a faster, more accurate quote.

SUBSCRIBE to our YouTube channel for more SOLIDWORKS Tech Tips!

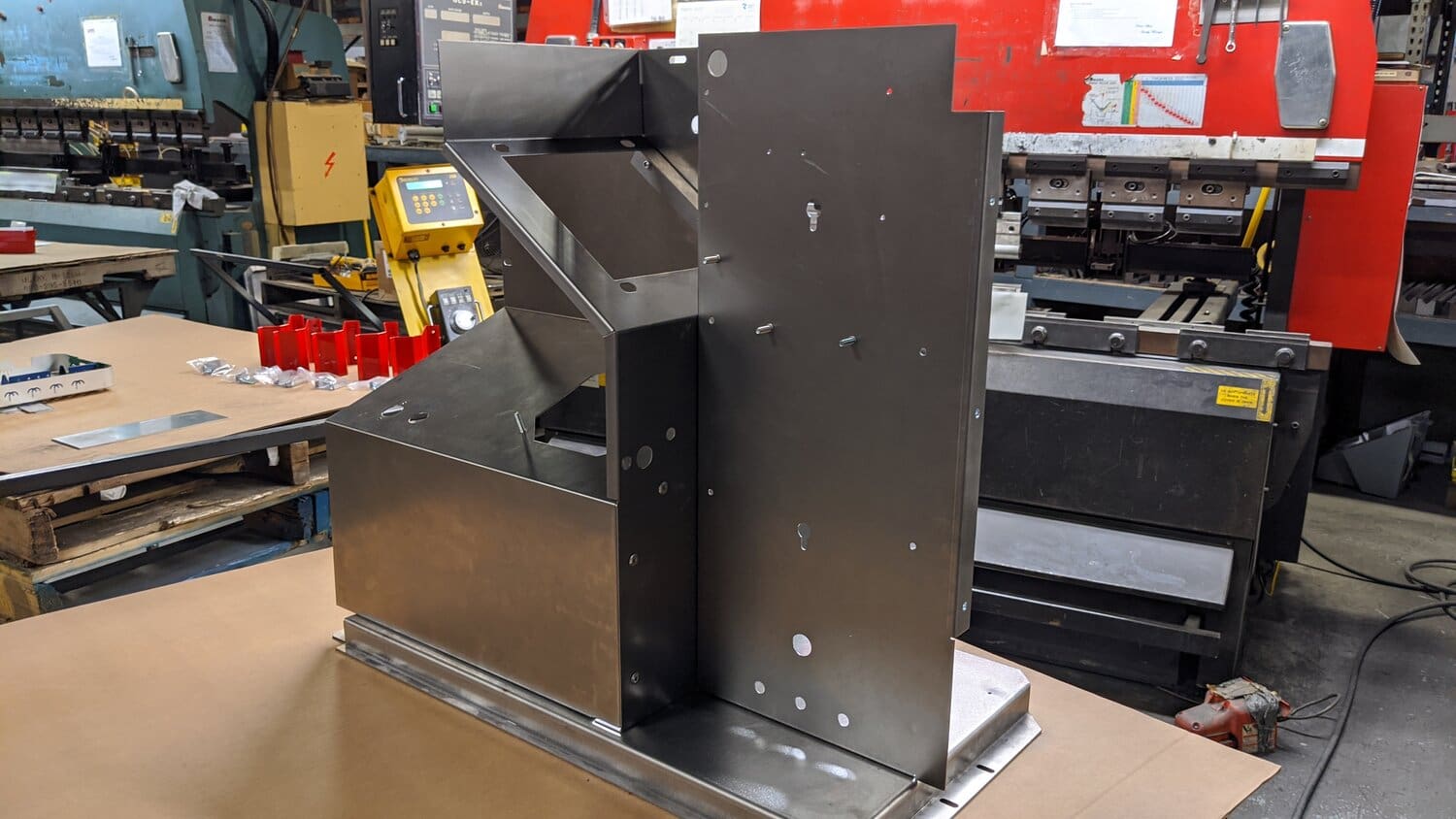

Overcoming Design Challenges for an Ultra-Complex Assembly

A customer brought an incredibly complex design to ASM for sheet metal fabrication and assembly. The asymmetrical assembly consisted of three unique components, each with numerous intricate features and odd geometries.

The dimensions were unusual, but our real concern was the assembly’s alignment. The model revealed significant gaps between the mated components. The gaps would need to be tightened up before we could begin fabrication, let alone build and weld the assembly.

To be clear, we’re grateful for every opportunity to help product developers and emerging engineering designers get their projects across the finish line. In this case, our customer leveraged ASM’s in-house engineering services to obtain a finely honed design and, ultimately, a high-quality assembly.
